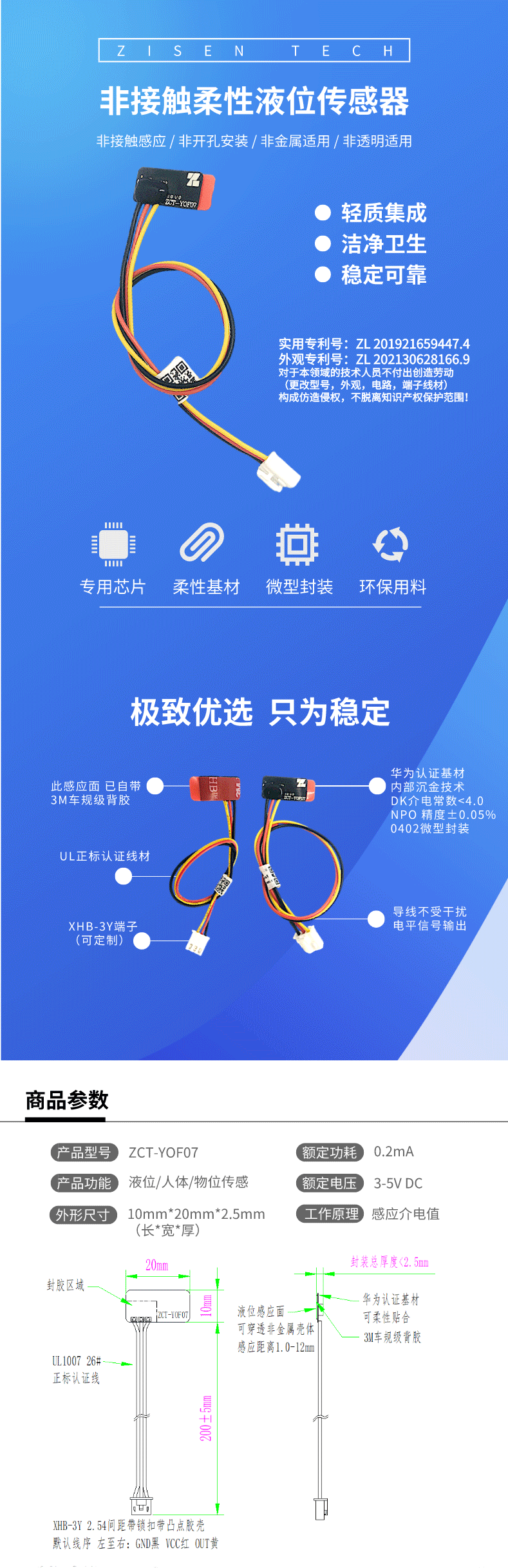

非接触式柔性液体液位传感器ZCT-YOF07
品牌：ZISEN
规格型号：ZCT-YOF07
性能简述：一、简介 Introduction 一种无接触式柔性电容液位传感器，旨在推动不接触方式检测液体， 相比传统的浮球开关，霍尔开关、金属探头，接触和投入方式检测， 它不触水感应，外形尺寸小
咨询热线：
15818598199
详细介绍
一、简介 Introduction
一种无接触式柔性电容液位传感器，旨在推动不接触方式检测液体，
相比传统的浮球开关，霍尔开关、金属探头，接触和投入方式检测，
它不触水感应，外形尺寸小，重量轻，无开孔安装，干净环保，易清洁。
它不仅符合科技发展所需，消费升级所需，使用习惯所需，市场所需，
产品符合电气化，信息化，数字化发展大趋势。
The non-contact flexible capacitive liquid level sensor designed to promote
non-contact liquid detection,Compared with traditional float switches,
Hall switches and metal probes, it uses contact and immersion methods to
detect liquids.It can sense the liquid level without touching water, has a small size,
light weight, no need to open holes for installation, clean, environmentally friendly,
and easy to clean.It not only meets the needs of technological development,
consumption upgrades, usage habits, and market needs,
The products conform to the development trend of electrification, informationization and digitalization.
二、产品特点 Features
1） 采用无接触方式感应液体，不接触液体；
The liquid is sensed in a non-contact mode, non-contact the liquid;
2） 采用柔性基材，弯曲特性，轻薄特性，介电常数值全面优于 FR-4
Used flexible substrate, bending characteristics, light and thin characteristics, and DK values are better than FR-4
3） 坚持小型化，稳定优先，功耗比竞品低 80%，元件精度 0.05%；
Adhere to miniaturization, stability is the priority, the power consumption is 80% lower than competing products,
and the component accuracy is 0.05%;;
4） 自带耐温防水 3M 背胶，传感器外置容器外壁，无需开孔固定；
Comes with temperature-resistant and waterproof 3M adhesive, sensor is placed on the outer wall of the container,
no need to open holes for fixation;

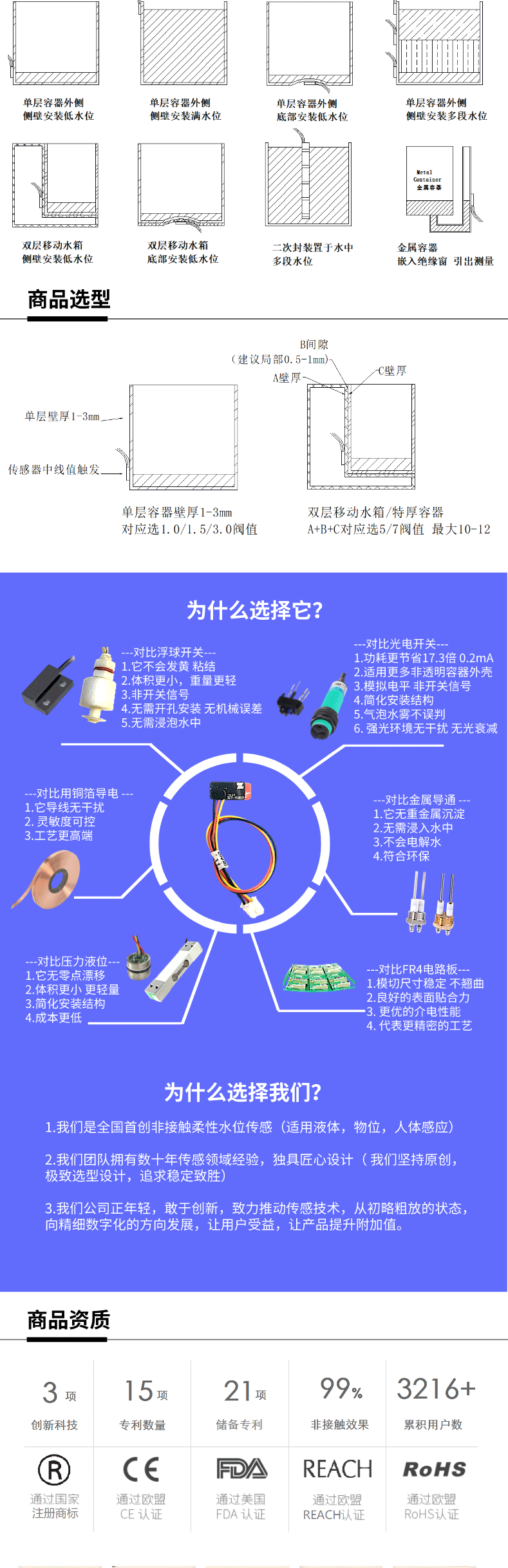

5）出厂标定 3mm/5mm/7mm 三档距离，最大 12mm，适合一层/两层/多层壁厚距离；
Factory calibrated 3mm/5mm/7mm three-level distance, Max 12mm, Corresponding to one layer/two
layers/multilayer wall thickness distance；
三、功能与检测范围 Function and detection range
1） 低液位提醒，满液位提醒，多段液位提醒；
Low liquid level reminder, full liquid level and multi-stage liquid level reminder
2） 适用非金属容器，罐体，水箱，囊袋，玻璃，陶瓷，硅胶，亚力克，塑胶等
Suitable for non-metallic containers, tanks, soft bags, glass, ceramics, silica gel, acrylic, plastic, etc.
3） 可检测多种类液体：
水类：蒸馏水，矿泉水，纯净水，市政自来水，雨水
Water: distilled water, mineral water, purified water, municipal tap water, rainwater,
油类：汽油，柴油，混合油，润滑油，香薰油，冷却油
Oils: gasoline, diesel, mixed oil, lubricating oil, aroma oil, cooling oil, etc.
化工：墨水，胶水，清洁剂等；医疗：药水，体液，麻醉剂，尿液；其他液体；
Chemical:inks, glues, detergents, etc.; medical: potions, body fluids, anesthetics, urine; other liquids;

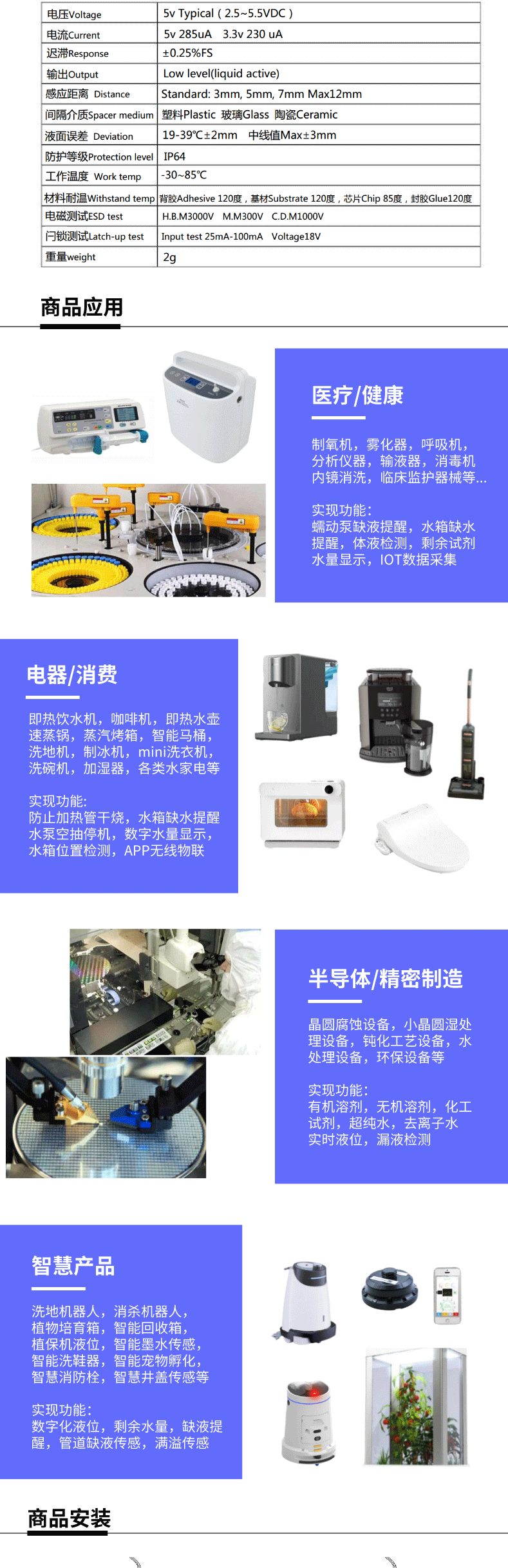

四、应用领域 Application field
家电产品，清洁产品，护理产品，医疗，高精度制造，智慧物联网
轻量化，便携化，曲面外观，量化，数字化，智能升级产品；
Home appliances, cleaning products, care products, medical, high-precision manufacturing, smart IoT
Lightweight, portable, curved appearance of products, quantitative, digital, intelligent upgrade product
五、参数Parameter
输入电压V
oltage
5v Typical (2.5-5.5Vdc)
电流功耗Current
5v/290μ A 3v/235μ A （低功耗）
输出信号Output
Analog level （有水低电平/无水高电平)
预设感应距离 Distance
1.5mm/3mm/5mm/7mm/10mm Max12mm
间隔介质Spacer medium
Plastic塑料 Ceramic陶瓷 Glass玻璃（非金属物）
液面误差 Deviation
单层水箱single 2-4mm/移动水箱mobile water tank 4-6mm
工作温度 Work temp
-20∼85℃
材料耐温 Material temp
3M 121℃, PI 180℃, Chip 85℃, wire80/105℃, Glue135℃
闩锁测试Latch-up test
Input test 25mA-100mA Voltage18V
电磁测试ESD test
H.B.M3000V M.M300V C.D.M1000V
防水等级Waterproof level
IP62
重量weight
1g
